Description

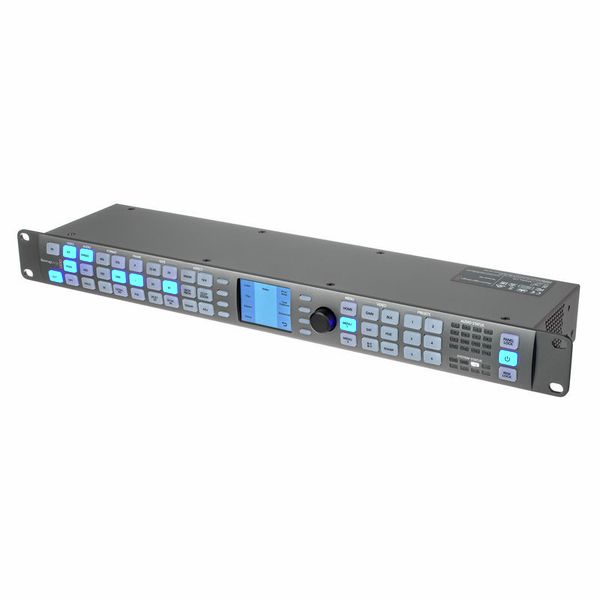

The Blackmagic Design Teranex AV is a professional-grade standards converter designed for live event production, AV installations, broadcast, post-production and mixed-format systems. It handles complex video and audio format conversions with very high quality and minimal latency.

🔧 Key Features

🎥 Format Conversion

• Performs 1,089 up-conversions, down-conversions, cross-conversions and standards conversions.

• Supports formats from NTSC/PAL up to UHD 2160p60 (4K).

• Real-time processing with ultra-low latency (~67 ms).

🎚️ Connectivity

• 12G-SDI inputs and outputs (multi-rate SD/HD/2K/4K).

• HDMI 2.0a input, loop through and output.

• Quad-link 3G-SDI outputs for legacy Ultra HD feed splitting or multi-screen distribution.

• XLR analog audio and consumer Hi-Fi connections, plus AES/EBU support.

• Optional SMPTE fibre support via an add-on cage.

🖥️ Professional Tools & Controls

• Built-in still store for logos/graphics and live freeze frame functions.

• Retains ancillary data such as timecode and subtitles across conversions.

• Can be controlled from the front panel or remotely via Ethernet.

🎛️ Typical Uses

• Live events and concerts — real-time feed conversion and projection syncing.

• Conference and corporate AV — onboard still graphics, freeze frames and format matching.

• Broadcast/installation — format bridging between legacy and modern video formats.

📌 Technical Notes

• Compact rack-mountable unit (approx. 482 mm × 125 mm × 44 mm; ~2 kg).

• Designed for continuous professional environments with robust build quality.
