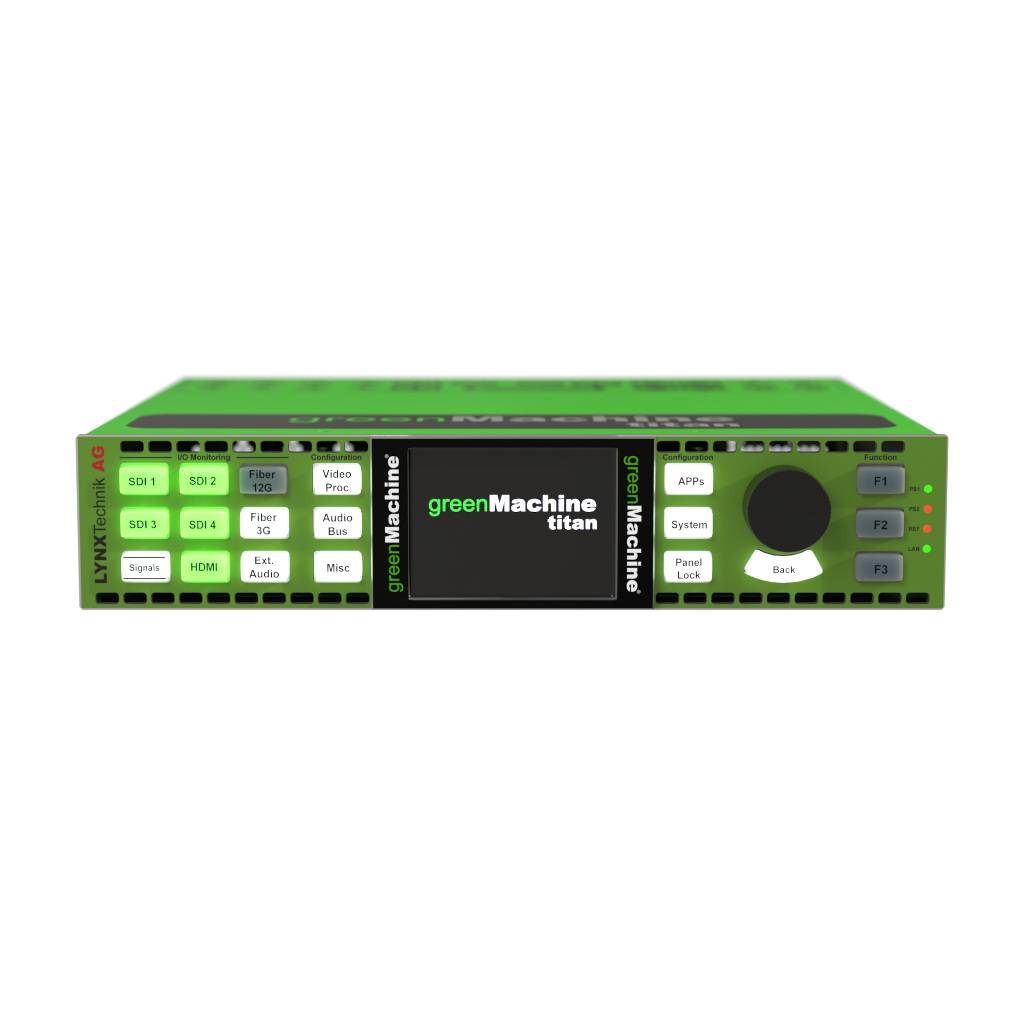

Lynx GreenMachine Titan

Lynx GreenMachine Titan

The greenMachine titan can process either four 3G-SDI inputs or a single 12G-SDI input. It supports up to UHD 3840×2160 @60 Hz and converts between single-link 12G-SDI to/from quad-link 3G-SDI (2SI). Our units can handle handle routing, up down cross conversions and frame sync functionality as well as audio embedding and de-embedding to/from MADI or Analog.

Category: Brand:

Description

The greenMachine titan can process either four 3G-SDI inputs or a single 12G-SDI input. It supports up to UHD 3840×2160 @60 Hz and converts between single-link 12G-SDI to/from quad-link 3G-SDI (2SI). Out units can handle handle routing, up down cross conversions and frame sync functionality as well as audio embedding and de-embedding to/from MADI or Analog.

They are supplied in a 1U rackmount frame with MADI SFP and Dual PSU’s for resilience.

4-Channel 3G-SDI or 1-Channel 12G-SDI general purpose A/V processing
• Internal I/O signal router
• 3x 3G-SDI inputs and 3x 3G-SDI outputs
• 1x 12G-SDI Input and 1x 12G-SDI output
• 2SI Quad-Link to/from Single-Link Conversion
• 1x UHD HDMI input and 1x UHD HDMI output
• 4x AES/Analog Audio inputs
• 4x AES/Analog Audio outputs
• 4x GPI and 4x GPO
• Optional 3G-SDI fiber I/O (available on request)
• Optional 12G-SDI fiber I/O (available on request)
• Optional 1GbE fiber connection (available on request)
• Integrated control panel with color display
• Small footprint: 1RU by half 19″ rack width
• Nova controller with custom control included
• Full SNMP V2 support and compatibility with LynxCentraal
