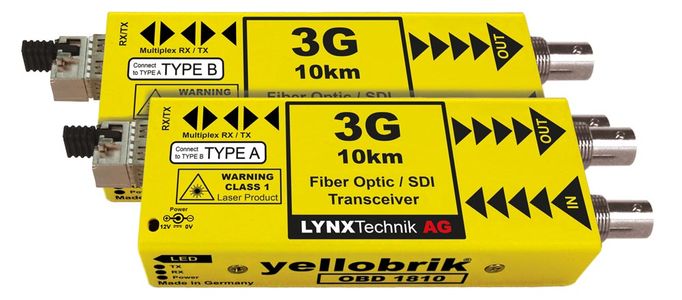

Lynx OBD1810 Pair

Lynx OBD1810 Pair

The Lynx Technik OBD-1810 is a compact bidirectional SDI-to-fibre optic transceiver system designed for transporting uncompressed broadcast-quality SDI signals over long distances using a single fibre link. It is supplied as a matched pair of modules (Type A and Type B) that communicate over a WDM optical connection, allowing simultaneous send and receive of SDI signals over one fibre.

Category: Brand:

Description

🎥 SDI Video Support

  • Supports SD-SDI, HD-SDI and 3G-SDI formats (up to 1080p60 / 3 Gb/s).

  • Compatible with 3G-SDI Level A and Level B standards.

🔁 Bidirectional Transmission

  • Send and receive SDI simultaneously using a single simplex fibre.

  • Utilises WDM (wavelength-division multiplexing) so two signals can travel over the same fibre.

⚡ Automatic Signal Handling

  • Auto-detects and reclocks incoming SDI signals at:

    • 270 Mb/s (SD)

    • 1.5 Gb/s (HD)

    • 3 Gb/s (3G)

  • Ensures stable output and improved signal integrity.

🌐 Long-Distance Transport

  • Transmission distance up to 10 km over single-mode fibre.

  • Ideal for campus links, remote camera feeds, or connecting buildings.

🔌 Connectivity

  • 1× SDI input and 1× SDI output per module.

  • LC fibre connection (single-mode typical).
