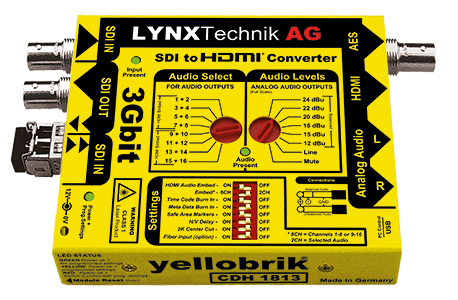

Description

🎥 SDI Video Conversion

Converts SD-SDI, HD-SDI and 3G-SDI signals (up to 1080p60 / 3 Gb/s) to HDMI.

Supports 3G-SDI Level A and Level B formats.

Maintains native resolution and frame rate (no scaling) for accurate signal monitoring.

📺 HDMI Monitoring Output

HDMI 1.4 output with RGB or YCbCr colour formats and deep-colour support.

Supports single-link 3D formats including side-by-side and top-bottom.

Suitable for use with standard HDMI displays for confidence monitoring.

🔊 Audio Handling

De-embeds audio from the SDI signal.

Provides:

AES3id digital audio output (2 channels)

Analogue stereo audio outputs via ¼-inch jacks.

Up to 8 embedded audio channels can be passed through to the HDMI output.

🖥️ Monitoring Tools

Built-in on-screen monitoring overlays, including:

Timecode burn-in

16-channel audio level meters

Safe-area markers

Metadata display.

Useful for engineering confidence monitoring and signal verification.

🌐 Fibre Connectivity (Optional, please let us know if you need SFP’s)

Integrated SFP slot allows optional optical SDI transmission or reception.

Supports various fibre modules for distances up to ~10 km or more depending on optics.
