Ross Video Ultrix FR12

Ross Video Ultrix FR12

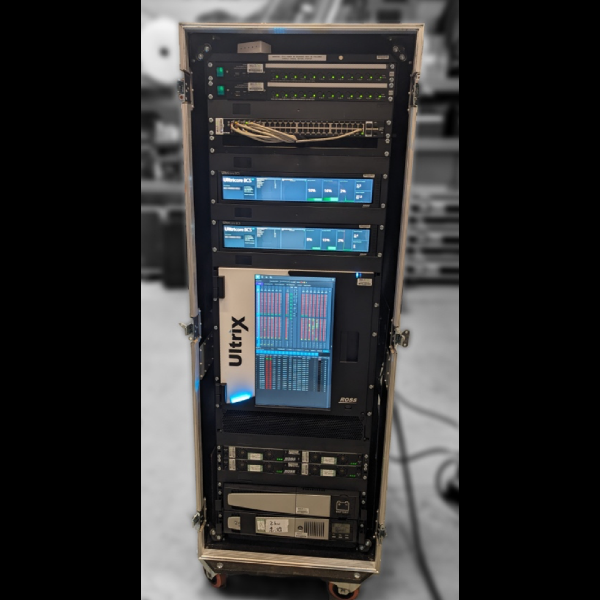

Flypack Ross Video FR12 Router available with up to 16 HDX-IO cards, a powerful range of licenses, wired into 32U shock mounted flightcase.

As a large and complex system, we would most commonly hire this system with a guarantee engineer to configure and support your production requirements.

Category: Brand:

Description

Flypack Ross Video FR12 Router

  • Up to 16 x HDX-IO SDI Cards available
  • 256 x 256 plus additional Aux I/O
  • 5 x SFP-MADI-COAX MADI Transceiver SFPs (additional available if required)
  • 2 x Ultripower with 2 x Ultripower PS in each for fully redundant power
  • 2 x Ultricore BCS Redundant System Controllers, each has dual PSU
  • Riello SDH3000 UPS with EBM external battery, more than 10 minutes run time on
    normal load
  • 2 x DEM MDU12i Intelligent mains distribution (1 x UPS fed) with environmental
    monitoring
  • 1 x Ubiquiti ES48 Switch (IP MDUs, Ultripowers and router ETH2 wired, BCS’s and
    router ETH1 patchable to this via rear CTP or to secondary switch).

Powerful range of licenses

  • 12 x Ultriscape Multiview Licenses (with ULTRISCAPE-CA option for alarm and caption display)
  • 22 x Ultrisync Framesync Licenses
  • 2 x Ultrimix-MXR Audio Mixer Licenses

Other licenses can be loaded on request

Wired into 32U shock mounted flightcase

  • All Video, MADI and Network wired to CTP
  • Dual 16A Power connections on ~3m cables
  • Brakes on all wheels
